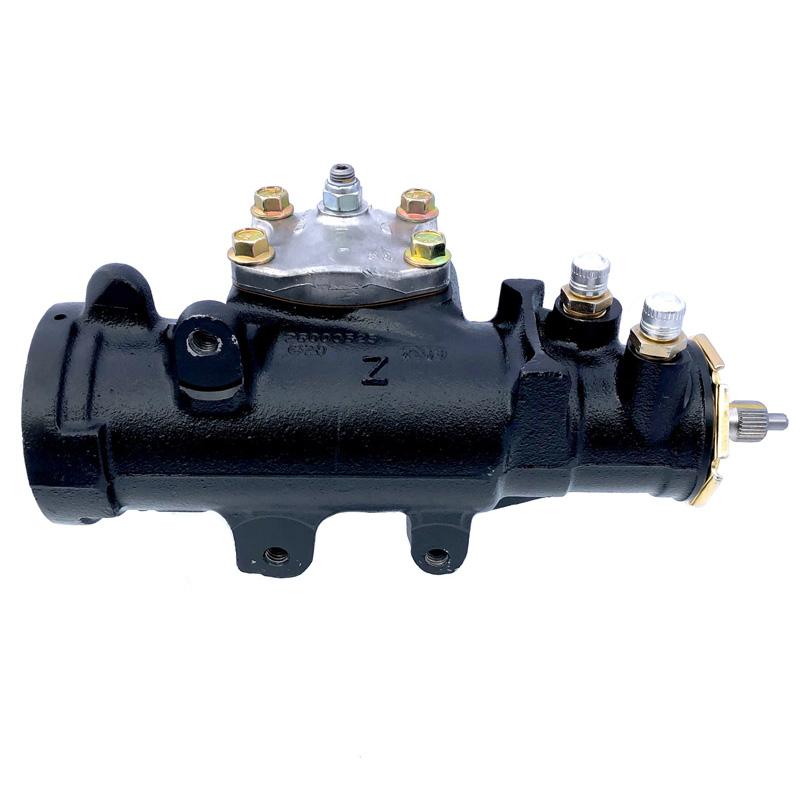

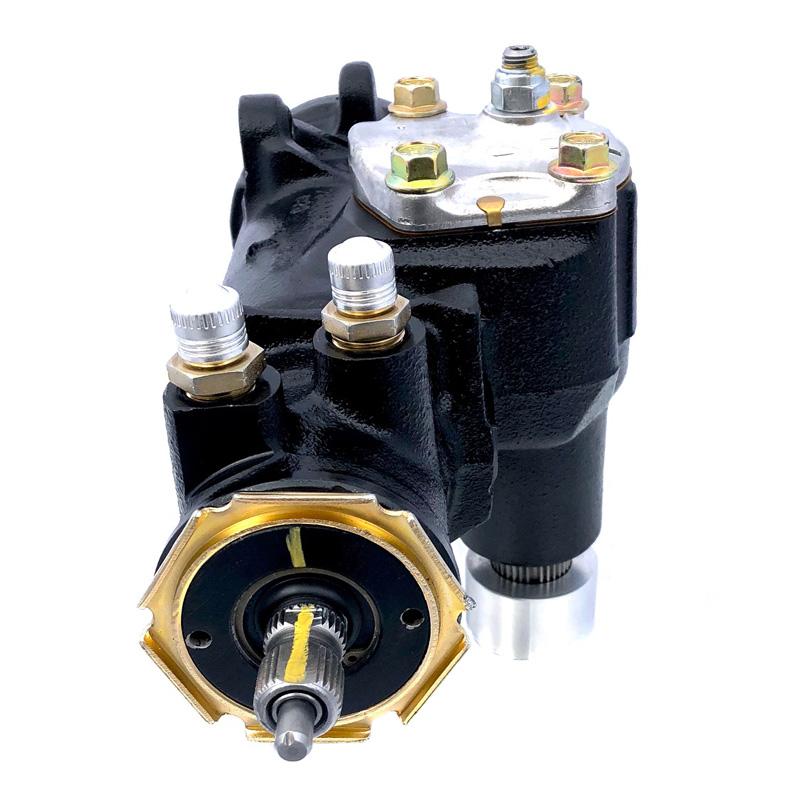

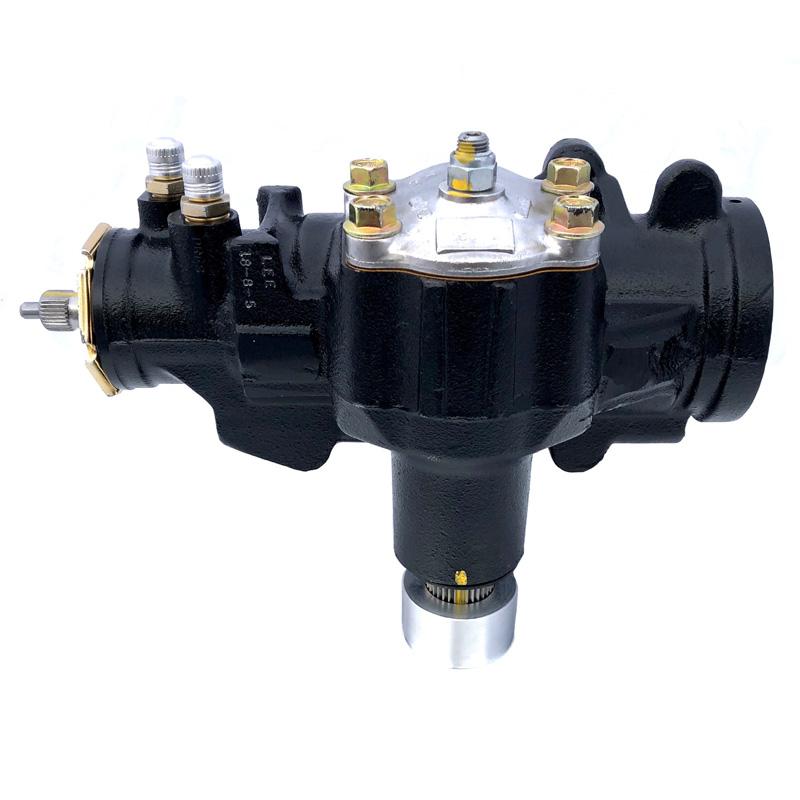

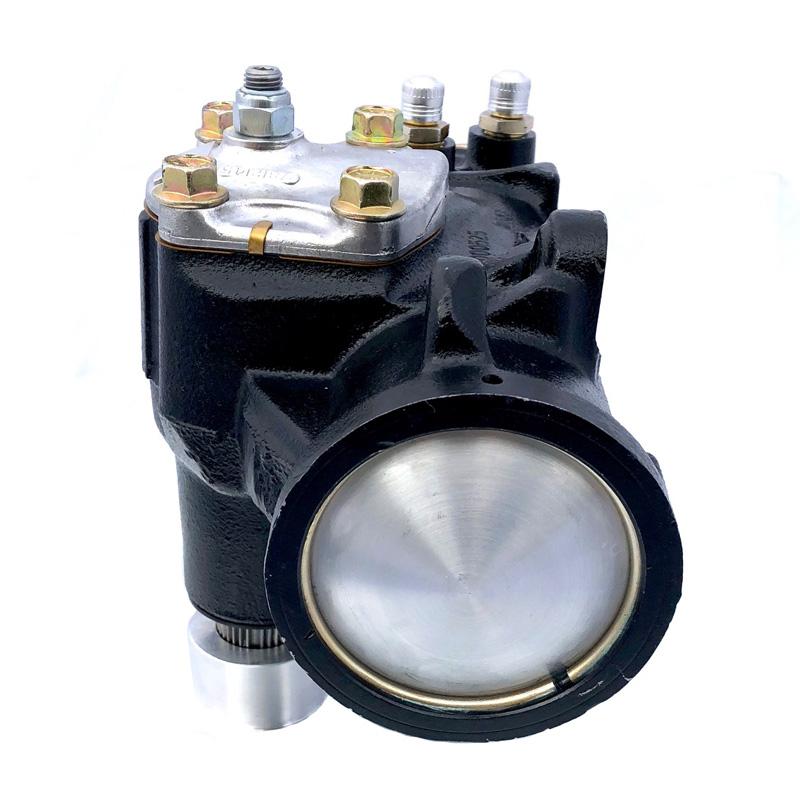

Saginaw 800 Steering Gearbox 3 Bolt 16:1 Ratio For GM Classic Cars

1 review

IMPORTANT NOTE: There is a Core charge of $75 that is included in the price of this product. If you return your Core to us, we will refund a portion of this product total. The portion refunded will depend on the quality of Core you are delivering to us. View our core values and policies.

SHIPPING LABEL: We can usually supply a shipping label for approximately $25 (depending on your address) for you to send your core to us. Please call 661-568-9170 to arrange.


$ 695.00 plus $75.00 Core deposit

Total Price: 770.00

Quantity

Product Details

This is a newer style Saginaw 800 gearbox that has the smaller 3/4-30 spline input shaft. If you are installing in a Pre 1980 vehicle, you will need a 3/4-30 rag joint (our Part # 62710-S), or you can choose to the 13/16-36 input shaft upgrade for $75. Also choose the fitting style that matches your needs (Seat kit installed for Pre 1980 inverted flare hoses, No seats installed for 1980- Present o-ring style hoses, or -6 AN fittings). 16:1 Variable Ratio OEM replacement steering gearbox.

This gearbox is fitted with a 25# valve that matches well with the 16:1 variable ratio gearbox. To lean more about steering feel and valve weights take a look at this link: Steering Feel Explained

Specs

  • 16:1 Variable Ratio
  • 3 bolt mounting pattern
  • 3/4-30 spline input shaft
  • Valve Weight: 25#

Options

  • Fittings: Choose Inverted Flare for Pre-1980 vehicles, O-Ring for 1980-present, or -6AN
  • 13/16-36 Spline Input Shaft
  • Billet End Cap
  • Billet Top Cover with Needle Bearing

Shipping

This product will be shipped between 5-7 business days from when order is placed.

SKU: GB-800-16-3-25
