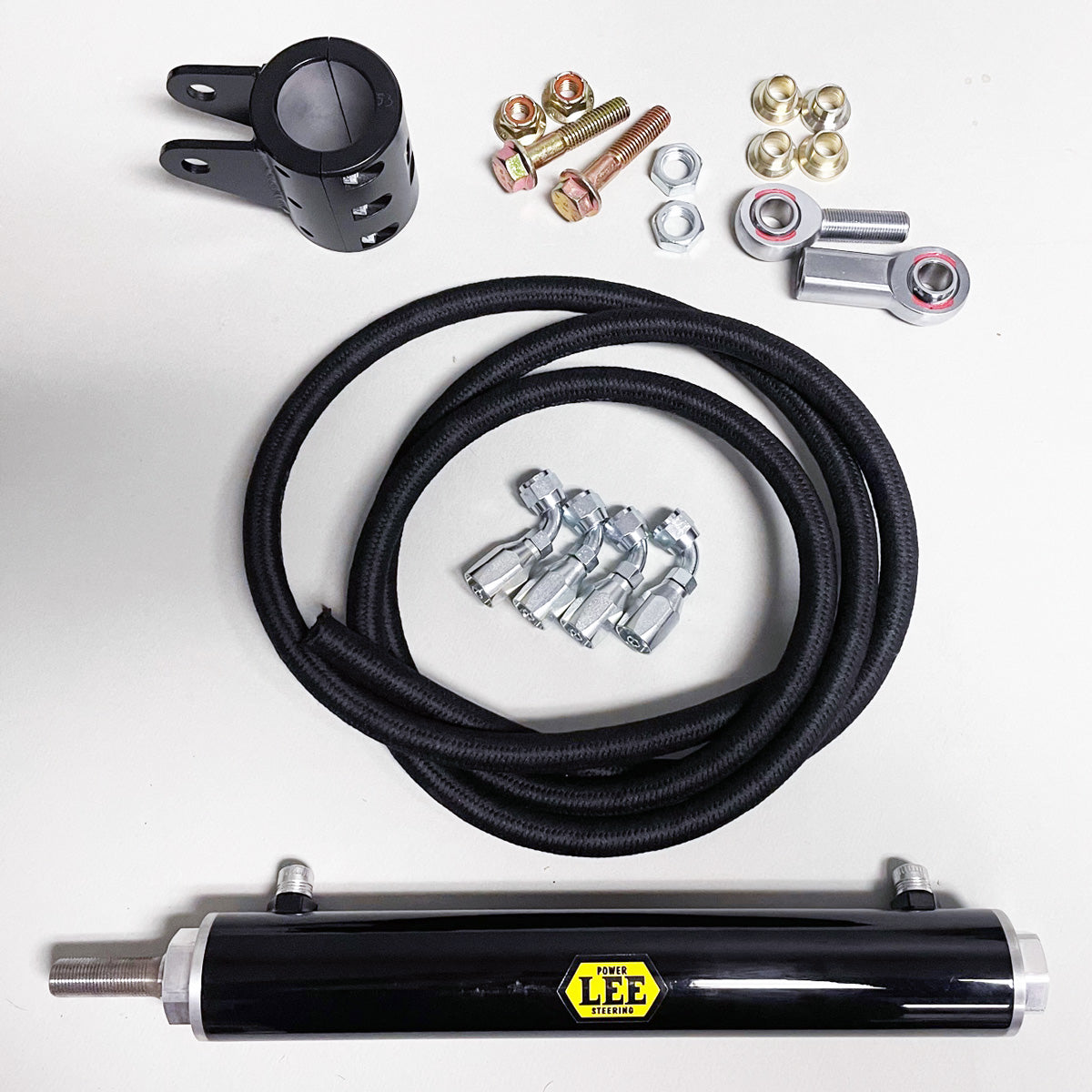

Complete Ram Kit for 99-03 Ford F250/350/Excursion
- This kit includes a 2" diameter x 8" stroke hydraulic ram with a 5/8" shaft
- Complete 5/8" rod end kit
- 1 3/4 Tie Rod Clamp (verify this matches your tie rod diameter)
- Ram Hose Kit (4- 90 Degree Hose Ends, 8' High Pressure Hose)
Lee Rams are made from DOM tubing, threaded aluminum end caps, an aluminum piston and 55,000 psi chrome rod. Every part is completely made in house!
The rams are held to precise tolerances to greatly reduce the amount of internal bleed by.
The main two features that sets our rams apart are the availability of ram lengths to fit your exact needs and the soft stops built into the piston design. Lee rams are the only rams to have a built in soft stop. When the ram gets to the last quarter inch of travel at either end the port orifice closes down to slow the travel of the ram. This protects the steering system from slamming against the end stops a greatly reduces wear and tear on the system.
Our tie rod clamp uses a two ear, double shear design. This is much stronger than some of the single bolt tie rod clamps on the market. It also 3” wide and features a 6 bolt clamp system that is good for over 8000lbs of clamping force.
